How to use candump and can-utils for practical CAN bus debugging

Why read this

can-utils is the fastest way to prove that a CAN interface, bitrate, IDs, and payloads are sane before you move into DBC decoding or GUI review.

Why candump still matters

When a CAN bus problem is unclear, start with the simplest tool that can tell the truth. On Linux, that is usually SocketCAN plus can-utils.

SocketCAN exposes CAN controllers as network interfaces such as can0, can1, or vcan0. That design is useful because the Linux networking stack already knows how to handle sockets, filters, timestamps, and multiple applications reading from the same interface. The can-utils project then gives you small command-line tools on top of that interface: candump, cansend, cangen, canplayer, cansniffer, canbusload, and more.

For an engineer working with DBC files, candump is not the final destination. It is the first reality check. Before you ask whether a DBC signal is wrong, you need to know:

Is the interface up?
Is the bitrate correct?
Are frames arriving?
Are the expected CAN IDs present?
Are the payload lengths classical CAN, CAN FD, or mixed?
Does a replayed log reproduce the issue?

DBC Utility helps with the database side. candump helps with the raw bus side.

Install can-utils

On Debian or Ubuntu:

sudo apt update
sudo apt install can-utils

On Fedora:

sudo dnf install can-utils

On Arch:

sudo pacman -S can-utils

The exact package version depends on the distribution. For production benches, prefer a pinned distribution package or an internally approved package build so every tester uses the same tool behavior.

Start safely with vcan0

Before touching real hardware, use a virtual CAN interface. It behaves like a CAN interface from the application perspective, but it does not require a transceiver, wiring, or a vehicle.

sudo modprobe vcan
sudo ip link add dev vcan0 type vcan
sudo ip link set up vcan0

Now open one terminal and listen:

candump vcan0

In another terminal, send a frame:

cansend vcan0 123#1122334455667788

You should see something like:

  vcan0  123   [8]  11 22 33 44 55 66 77 88

This proves your userspace tools work before you introduce a USB-CAN adapter or vehicle wiring.

Bring up a real CAN interface

For classical CAN at 500 kbit/s:

sudo ip link set can0 down
sudo ip link set can0 type can bitrate 500000
sudo ip link set can0 up
ip -details link show can0

For CAN FD with nominal bitrate 500 kbit/s and data bitrate 2 Mbit/s:

sudo ip link set can0 down
sudo ip link set can0 type can bitrate 500000 dbitrate 2000000 fd on
sudo ip link set can0 up
ip -details link show can0

Do not guess the bitrate on a real vehicle network. If the bitrate is wrong, you will see errors or silence. If termination or wiring is wrong, you may disturb the network. Work on hardware you own or are authorized to test.

Capture traffic with timestamps

Basic capture:

candump can0

Absolute timestamps:

candump -t a can0

Delta timestamps:

candump -t d can0

Log to a file:

candump -l can0

candump -l writes a file named similar to:

candump-2026-05-22_190501.log

The log format is useful because many CAN tools can parse it later. A typical line looks like:

(1779476701.123456) can0 123#1122334455667788

That line contains timestamp, interface, CAN ID, and payload. For DBC work, this is enough to decode signals if the matching database is available.

Filter IDs early

If a bus has hundreds of messages, raw candump can0 can become noise. Use filters.

Exact standard ID 0x123:

candump can0,123:7FF

IDs from 0x100 to 0x1FF:

candump can0,100:700

Two filters on one interface:

candump can0,123:7FF,456:7FF

The format is:

interface,can_id:can_mask

The filter passes frames where:

received_id & mask == can_id & mask

Filtering is not just cosmetic. It keeps captures focused and makes later DBC review easier.

Replay a capture

If you captured a log with candump -l, replay it with canplayer.

canplayer -I candump-2026-05-22_190501.log

Replay into a virtual interface:

canplayer vcan0=can0 -I candump-2026-05-22_190501.log

That mapping means: frames originally recorded on can0 are played onto vcan0. This is useful for testing a decoder, reproducing a bug, or demonstrating a tool without connecting to the real bus again.

Generate traffic for testing

Use cangen when you need synthetic traffic.

Generate random frames:

cangen vcan0

Generate frames with a fixed ID:

cangen vcan0 -I 123

Generate a fixed payload:

cangen vcan0 -I 123 -D 1122334455667788

Send one frame repeatedly every 100 ms:

while true; do
  cansend vcan0 123#1122334455667788
  sleep 0.1
done

This is enough to test basic UI behavior, log handling, and DBC decode paths.

Decode candump output with a DBC

If you have a DBC file, cantools can decode candump output directly.

python3 -m pip install cantools
candump vcan0 | python3 -m cantools decode vehicle.dbc

For a log file:

cat candump-2026-05-22_190501.log | python3 -m cantools decode vehicle.dbc

For one-line output:

cat candump-2026-05-22_190501.log | python3 -m cantools decode --single-line vehicle.dbc

This is the bridge between raw capture and meaningful engineering values.

What to check before blaming the DBC

When decoded values look wrong, do not jump straight to "the DBC is bad." Check these in order:

Interface bitrate
CAN FD vs classical CAN mode
Standard 11-bit vs extended 29-bit identifiers
Endianness in the signal definition
Start bit and signal length
Signed vs unsigned interpretation
Scale and offset
Multiplexer selector value
Whether the frame belongs to the expected bus segment

DBC Utility is useful at this stage because you can inspect message IDs, signal layout, scale, offset, byte order, and multiplexing in one desktop view instead of searching through a text file.

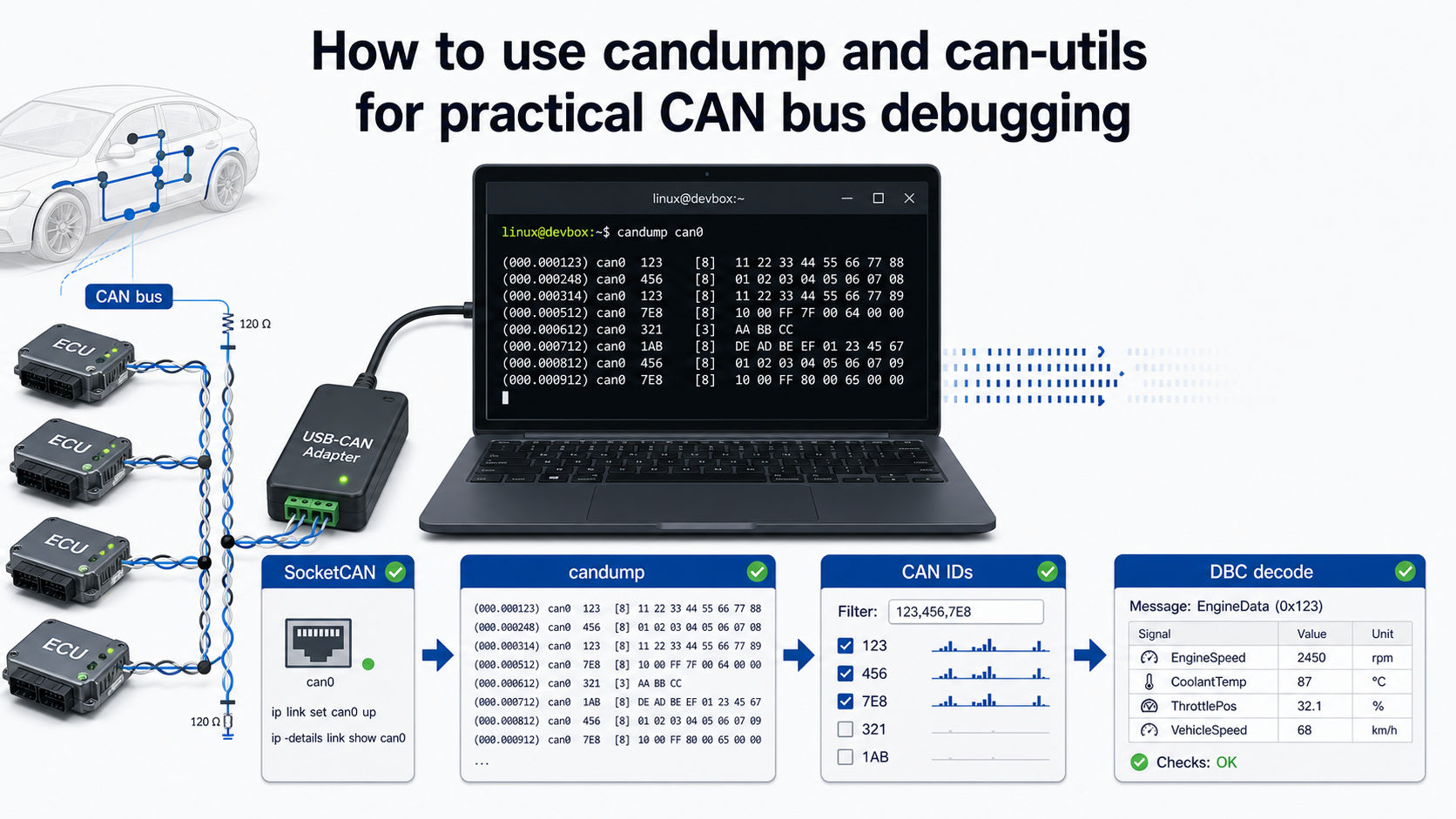

Practical workflow

For a new CAN issue, use this sequence:

# 1. Bring up the interface
sudo ip link set can0 down
sudo ip link set can0 type can bitrate 500000
sudo ip link set can0 up

# 2. Confirm traffic exists
candump -t a can0

# 3. Save a short capture
candump -l can0

# 4. Decode with a DBC
cat candump-*.log | python3 -m cantools decode vehicle.dbc

# 5. Inspect or edit the DBC
# Open vehicle.dbc in DBC Utility and review messages, signals, layout, and mux fields.

That workflow keeps raw data, decoded values, and database review connected.
